Advanced OOP

Class Relationships

Class Relationships in Java: IS-A, HAS-A, Association, Aggregation, Composition

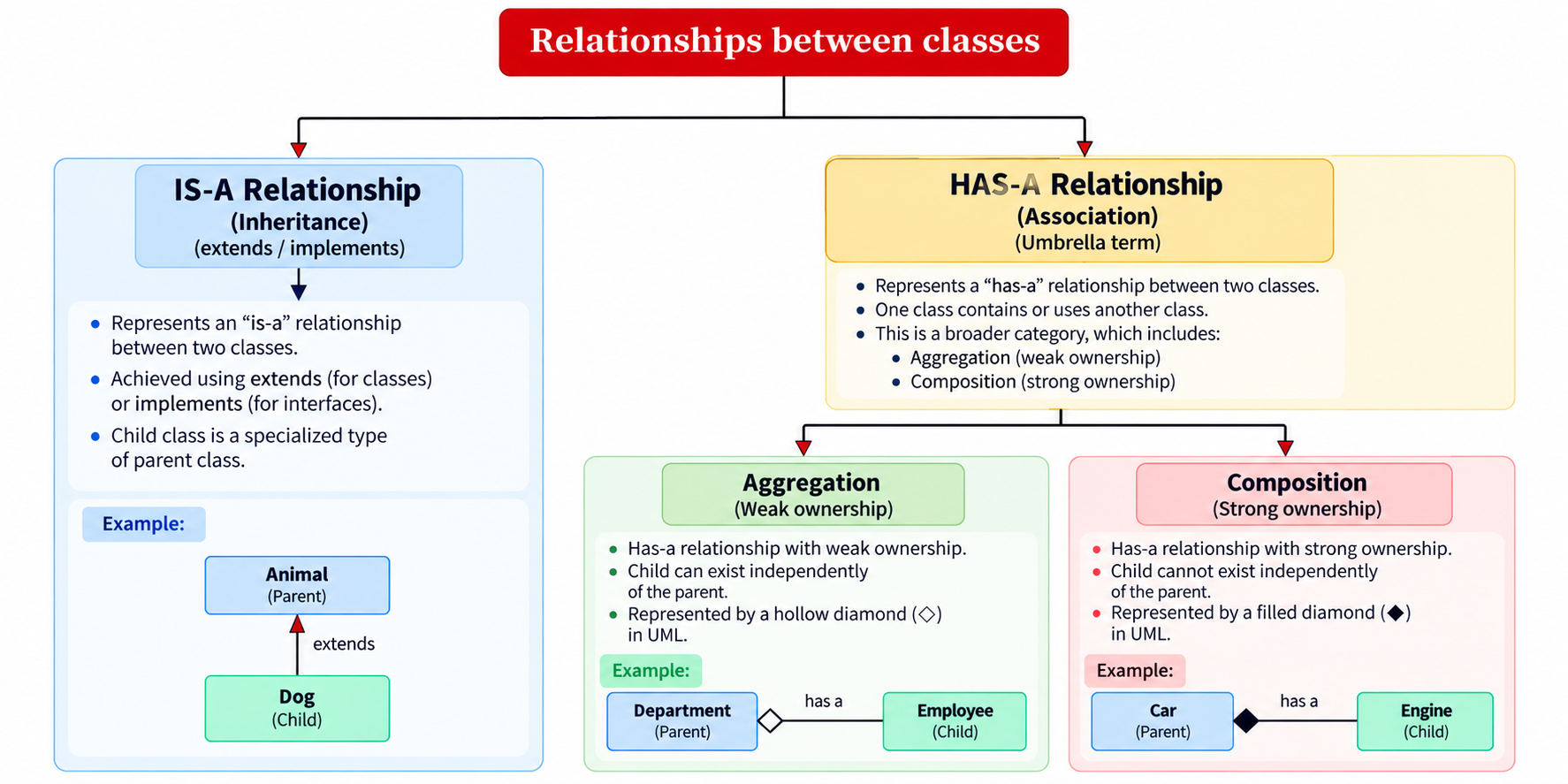

Classes in a program rarely work alone. Class relationships describe how one class is connected to another. They fall into one hierarchy:

In simple words:

IS-A = "is a type of". HAS-A = "holds or uses". Aggregation and Composition are stronger forms of HAS-A.

Quick Overview

Term	Meaning	Strength
IS-A	Child is a type of parent	Very strong (fixed at compile time)
Association	Two classes are related and can use each other	Weakest
Aggregation	Association where the part can live without the whole	Medium
Composition	Association where the part dies with the whole	Strongest

text

1Association  <  Aggregation  <  Composition
2  (weakest)                      (strongest)

1. IS-A Relationship (Inheritance)

A child class is a type of the parent class. It is achieved with extends (classes) or implements (interfaces).

text

1Animal
2  ↑
3 Dog      → Dog IS-A Animal

class Animal {
    void eat() {
        System.out.println("Eating...");
    }
}

class Dog extends Animal {
    void bark() {
        System.out.println("Barking...");
    }
}

public class Main {
    public static void main(String[] args) {
        Dog dog = new Dog();
        dog.eat();    // inherited
        dog.bark();
    }
}

// Output:
// Eating...
// Barking...

Test: Say "B is a A". If it sounds natural, use inheritance.

2. HAS-A Relationship

A class holds a reference to another class as a field. It is the parent idea behind Association, Aggregation, and Composition.

text

1Car HAS-A Engine
2Employee HAS-A Address

class Engine {
    void start() {
        System.out.println("Engine started");
    }
}

class Car {
    private Engine engine = new Engine();   // HAS-A

    void drive() {
        engine.start();
        System.out.println("Car is moving");
    }
}

HAS-A is not a keyword. It is just an object stored as a field.

3. Association

Association is the most general relationship. Two classes know about or use each other, but neither one owns the other. Both can exist independently.

text

1Student  ───────  Teacher
2         (uses / knows)

class Teacher {
    String name;

    Teacher(String name) {
        this.name = name;
    }
}

class Student {
    String name;

    Student(String name) {
        this.name = name;
    }

    void learnFrom(Teacher teacher) {   // just uses it, no ownership
        System.out.println(name + " is learning from " + teacher.name);
    }
}

public class Main {
    public static void main(String[] args) {
        Teacher t = new Teacher("Anita");
        Student s = new Student("Ravi");
        s.learnFrom(t);
    }
}

// Output:
// Ravi is learning from Anita

Types of Association by Multiplicity

Type	Meaning	Example
One-to-One	One object linked to one	Person ↔ Passport
One-to-Many	One object linked to many	Teacher → Students
Many-to-One	Many objects linked to one	Employees → Company
Many-to-Many	Many linked to many	Students ↔ Courses

4. Aggregation (Weak HAS-A)

Aggregation is an association where one class holds another class's object, but the held object can exist independently of the class holding it. The held object is usually created outside and passed in.

Part = the object being held. Whole = the object that holds it.

text

1Department ◇────── Teacher
2(whole)            (part, lives independently)

class Teacher {
    String name;

    Teacher(String name) {
        this.name = name;
    }
}

class Department {
    String title;
    Teacher teacher;   // created outside, passed in

    Department(String title, Teacher teacher) {
        this.title = title;
        this.teacher = teacher;
    }
}

public class Main {
    public static void main(String[] args) {
        Teacher t = new Teacher("Anita");
        Department d = new Department("Computer Science", t);

        d = null;   // Department is gone...
        System.out.println(t.name);   // ...but Teacher still exists: Anita
    }
}

5. Composition (Strong HAS-A)

Composition is the strongest form of HAS-A. The whole owns the part, and the part cannot exist without the whole. The part is usually created inside the owner.

text

1House ◆────── Room
2(whole)       (part, dies with the house)

class Room {
    String name;

    Room(String name) {
        this.name = name;
    }
}

class House {
    private Room bedroom;
    private Room kitchen;

    House() {
        bedroom = new Room("Bedroom");   // created and owned inside
        kitchen = new Room("Kitchen");
    }

    void showRooms() {
        System.out.println(bedroom.name + ", " + kitchen.name);
    }
}

public class Main {
    public static void main(String[] args) {
        House house = new House();
        house.showRooms();
        // When the House is gone, its Rooms go with it
    }
}

// Output:
// Bedroom, Kitchen

Aggregation vs Composition

Feature	Aggregation	Composition
Ownership	Weak	Strong
Lifecycle	Part lives independently	Part dies with the whole
Object created	Outside, then passed in	Inside the owner
UML symbol	Empty diamond ◇	Filled diamond ◆
Example	Department and Teacher	House and Room

All Relationships Together: University Example

import java.util.ArrayList;
import java.util.List;

// IS-A: Teacher and Student are types of Person
class Person {
    String name;

    Person(String name) {
        this.name = name;
    }
}

class Teacher extends Person {
    Teacher(String name) {
        super(name);
    }
}

class Student extends Person {
    Student(String name) {
        super(name);
    }

    // Association: Student uses Teacher, no ownership
    void learnFrom(Teacher teacher) {
        System.out.println(name + " is learning from " + teacher.name);
    }
}

// Aggregation: Department holds Teachers created outside
class Department {
    private String title;
    private List<Teacher> teachers = new ArrayList<>();

    Department(String title) {
        this.title = title;
    }

    String getTitle() {
        return title;
    }

    void addTeacher(Teacher teacher) {
        teachers.add(teacher);
    }

    void show() {
        System.out.println("  Department: " + title);
        for (Teacher t : teachers) {
            System.out.println("    Teacher: " + t.name);
        }
    }
}

// Composition: University creates and owns its Departments
class University {
    private String name;
    private List<Department> departments = new ArrayList<>();

    University(String name) {
        this.name = name;
        departments.add(new Department("Computer Science"));   // created inside
        departments.add(new Department("Mathematics"));
    }

    Department getDepartment(String title) {
        for (Department d : departments) {
            if (d.getTitle().equals(title)) {
                return d;
            }
        }
        return null;
    }

    void showInfo() {
        System.out.println("University: " + name);
        for (Department d : departments) {
            d.show();
        }
    }
}

public class Main {
    public static void main(String[] args) {
        Teacher anita = new Teacher("Anita");   // exists independently
        Student ravi = new Student("Ravi");

        University uni = new University("Global Tech");
        uni.getDepartment("Computer Science").addTeacher(anita);

        ravi.learnFrom(anita);
        uni.showInfo();
    }
}

// Output:
// Ravi is learning from Anita
// University: Global Tech
//   Department: Computer Science
//     Teacher: Anita
//   Department: Mathematics

Relationship	Where it appears in the example
IS-A	`Teacher` and `Student` extend `Person`
Association	`Student` uses `Teacher` in `learnFrom()`
Aggregation	`Department` holds `Teacher` objects created outside
Composition	`University` creates and owns its `Department`s

How to Decide

text

1Is B a type of A?                          → IS-A (Inheritance)
2Does A just use or know B?                 → Association
3Does A hold B, but B can exist alone?      → Aggregation
4Does A own B, and B dies with A?           → Composition

IS-A vs HAS-A

Feature	IS-A	HAS-A
Meaning	Child is a type of parent	Class contains another object
Achieved with	`extends` / `implements`	Object as a field
Coupling	Tight	Loose
Flexibility	Fixed at compile time	Can change at runtime
Example	`Dog IS-A Animal`	`Car HAS-A Engine`

Design Tip

"Favor composition over inheritance." Use inheritance only for a true IS-A relationship. For code reuse without IS-A, hold an object and delegate to it.

Interview Definitions

Term	Definition
IS-A	A relationship where a child class is a specialized type of a parent class, achieved by inheritance.
HAS-A	A relationship where a class contains a reference to another class as a field.
Association	A general relationship in which two classes are connected and can use each other.
Aggregation	A weak HAS-A association where the contained object can exist independently of the container.
Composition	A strong HAS-A association where the contained object cannot exist without the container.

Remember

IS-A = Inheritance. HAS-A = Association. Aggregation = HAS-A without ownership of lifecycle. Composition = HAS-A with full ownership.
